High Density Interconnect Printed Circuit Board With PCB Prototype and Mass Production Service Type

High Density Interconnect Printed Circuit Board With PCB Prototype and Mass Production Service Type

Brand Name: Customized
MOQ: 1 tấm
giá bán: Có thể đàm phán
Payment Terms: T/T
Detail Information
Place of Origin:
China
Chứng nhận:
ISO9001, ISO13485,IS014001
Loại bảng:
6 lớp
Vật liệu cơ bản:
FR4/ROGERS/Tg cao
Mặt nạ hàn:
Mặt nạ hàn xanh
Cầu mặt nạ hàn tối thiểu:
0,1mm
Hoàn thiện bề mặt:
EING
Loại dịch vụ:
Nguyên mẫu/ sản xuất hàng loạt PCB
Kích cỡ:
tùy chỉnh
Độ dày Cu:
1oz
Kích thước cơ chất tối đa:
24 ”x32”
chi tiết đóng gói:
Gói chân không
Làm nổi bật:

HDI PCB prototype service

,

high density interconnect PCB production

,

printed circuit board mass production

Mô tả Sản phẩm

Product Description:

The HDI PCB is a high density interconnect printed circuit board designed to meet the demanding requirements of modern electronic applications. With its advanced manufacturing techniques and superior material choices, this product ensures exceptional performance, reliability, and precision in complex circuit designs. The HDI PCB features an impressive minimum line space of 0.075mm, allowing for extremely fine circuit patterns that support miniaturization and high functionality in compact spaces. This capability makes it an ideal solution for cutting-edge electronics where space savings and high circuit density are critical.

HDI PCB Design DFM Requirements

Normally, DFM requirements relating to clearances in HDI PCB are quite strict,  but it can be come tured by taking advantage of your design rules in your PCB design software. Some of the important DFM requirements to gather before layout and routing include:

  • Circuit width and spacing limits
  • Annular ring and aspect ratio limits, especially for high reliability designs and requirements
  • Material choice used in the board to ensure impedance control in the required stackup
  • Impedance profiles for the desired stackup or layer pairs if available
  • Blind vias connect  exterior layer to at least one interior layer without penetrating the entire board.
  • Buried vias connect one or more inner layers together without any connections to the exterior layers of a board.
  • Any layer HDI refers to the use of stacked copper-filled microvias to connect multiple layers in a PCB.

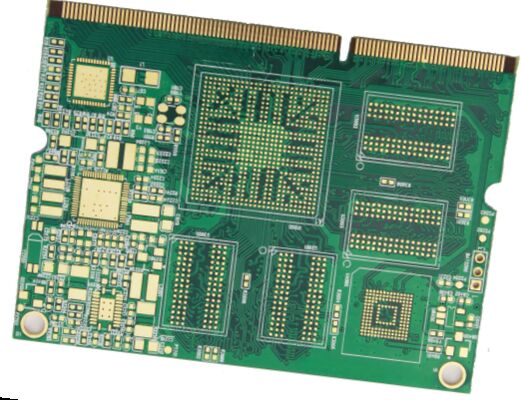

High Density Interconnect Printed Circuit Board  With PCB Prototype and Mass Production Service Type 0
